TWS-6F High Quality Industrial reinforced nylon plastics Industrial Wireless Remote Control
Specification
| Model | TWS-6F |
| Size | 15.8*7*3.9cm |
| Transmitter Weight | 300g |
| Transmitting fraquency | 315(MHZ) |
| Controlling distance | ≥100m/can be customized 250m/500m |
| Direction of movement | Up, down, East, South, West, North |
| Button life | ≥ 1 million times |
| Material | Industrial reinforced nylon plastics |
| Transmitter power supply | DC 3V (2 pcs alkaline batteries) |
| Receiver power supply | DC12V/24V or AC 36V/220V/380V (AC by external transformer) |
| Temperature range | -25℃~+75℃ |
| Button Text | Arrow / English / Chinese |
| Enclosure protection class | IP65 |
| Application | Gantry crane,Industrial furnace door,Winch etc. |
Product Description
High Quality TWS-6F Industrial Wireless Remote Control
Built-in 3 AA alkaline dry batteries on the transmitter side, the working voltage of the transmitter side is 4.5V, it can be used continuously for about 1 month, depending on the frequency of use, the power supply time will be different.
The working voltage of the receiver end is 12-24V AC and DC, relay output, and the contact capacity is 30V/5A, or 220V/10A.
(ACDC12-24V/open space 100m/), other voltages such as AC220V or AC380V, etc. will be adapted through external transformer.
Product Features

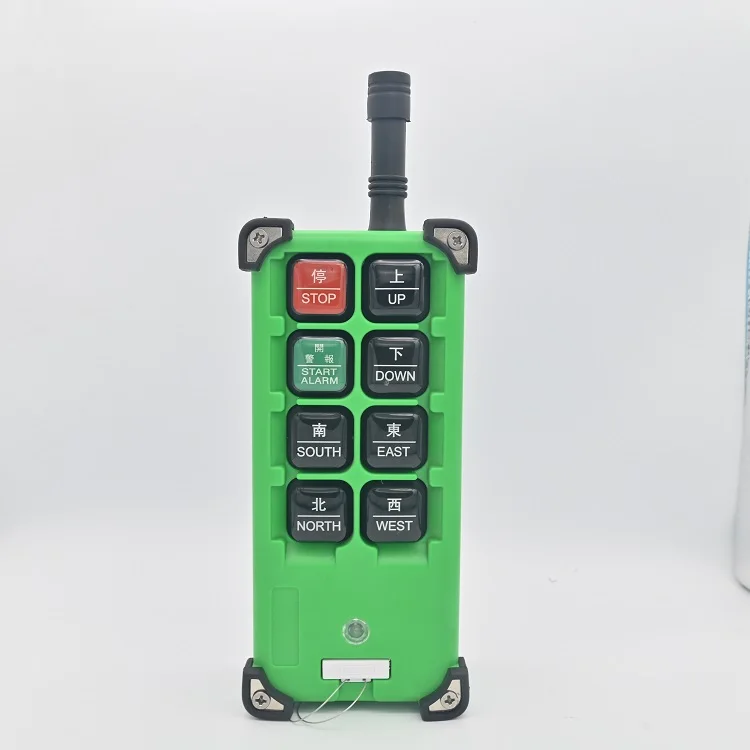

The transmitter has 8 buttons, and two No. 5 alkaline dry batteries are installed in the battery compartment
1. The transmitter is sealed with silicone rubber ring, which is good waterproof.
2. Heartbeat packet detection:Once the transmitter is damaged or the signal is lost, the receiver will stop automatically.

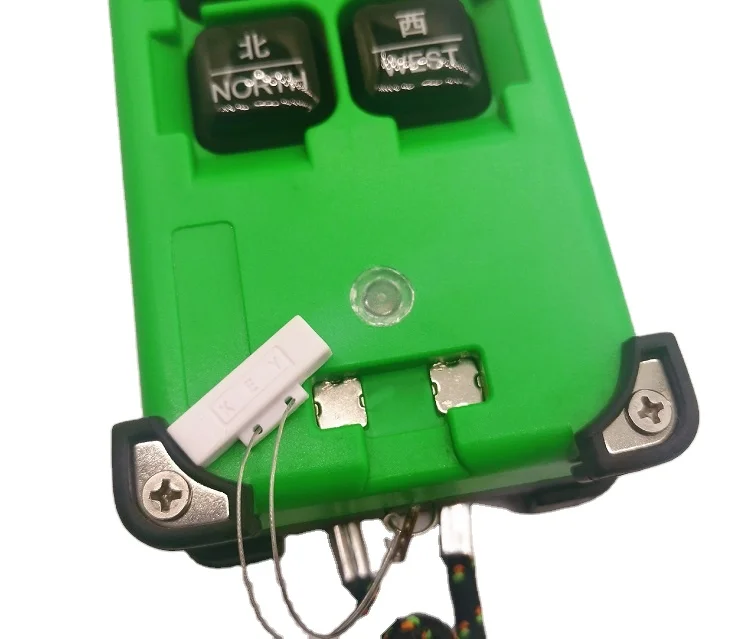

♦ Security key switch to prevent unauthorized use
Default configuration
1. Transmitter * 1 piece
2. Receivers * 1 piece
3. The receiver comes with 1m cable connector
4. Operation and Maintenance Manual
Attentions
1. Due to transportation requirements, the product is not equipped with battery.
2. When you order, please remark the voltage, DC12V/24V or AC220V/380V(AC by external transformer).
Warranty & Service
1. Customized logo and trademark are warmly-welcomed.
2. Good after-sale services offered.
3. 1 year warranty period, spare parts supply for free.
4. 100% QC inspection before shipment.
OUR ADVANTAGES
QUALITY ASSURANCE
To provide quality products at the same time to improve after-sales support
GOOD SERVICE
An independent R & D and design company with ten years of technology accumulation, which can be quickly customized.
OWN FACTORY
We have own assem- bling factory and mold factory.
PROFESSIONAL TEAM
Professional team to provide you with efficient service.
Product Tags:
|
|
Industrial AC380V 500m Wireless Gantry Crane Remote Control Reinforced Nylon Images
|
